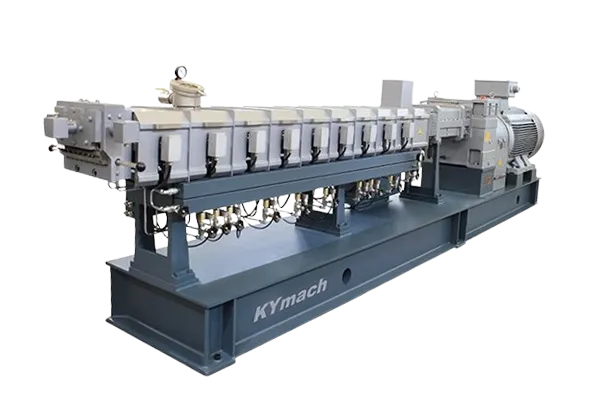

SK Twin Screw Extruder
Torque density: 11/13.5Nm/cm³
German “Henschel” Gearbox & British “BIBBY” Coupling:
- Gearbox torque density: 11 Nm/cm³ or 13.5 Nm/cm³
- Max screw speed: up to 900rpm.
- British BIBBY safety coupling
- CE certified
- High energy efficient with advanced heating and cooling systems
- Easy to operate, user-friendly
- Introduction
German “Henschel” Gearbox & British “BIBBY” Coupling
Offers torque of 11 Nm/cm³ and 13.5 Nm/cm³ with a maximum screw speed of 1200 rpm. CE certified and designed for energy efficiency and user-friendly operation. British BIBBY safety coupling protects the gearbox and processing section. Advanced heating and cooling systems enable accurate temperature control.
- Technical Parameter
| Model | unit | SK36 | SK53 | SK63 | SK73 | SK96 | SK135 |
| Screw diameter | mm | 36 | 51 | 63 | 73 | 94 | 133 |
| Max. Screw speed | rpm | 900 | 900 | 900 | 900 | 900 | 600 |
| Main moter power | kW | 55 | 185 | 355 | 560 | 1000 | 2000 |
| L/D | Max | 68 | 68 | 68 | 68 | 68 | 48 |
| Throughput | kg/h | 50-220 | 250-800 | 500-1600 | 750-2200 | 1200-4000 | 3000-9500 |
- Applicable fields
Polyolefin alloys, filled modifications, reinforced modifications, masterbatches, engineering plastics, recycled plastics, biodegradable materials, etc.
